Ecophon Fade™ ONE Smooth
Fade ONE Smooth is a spray applied acoustic plaster with ultra smooth finish and simple installation...
Fade ONE Smooth is a spray applied acoustic plaster with ultra smooth finish and simple installation. Bringing aesthetics and acoustic performance together, makes it ideal for a wide range of applications. Choose between standard white color or tint it in custom colour with Fade Colour Dye.

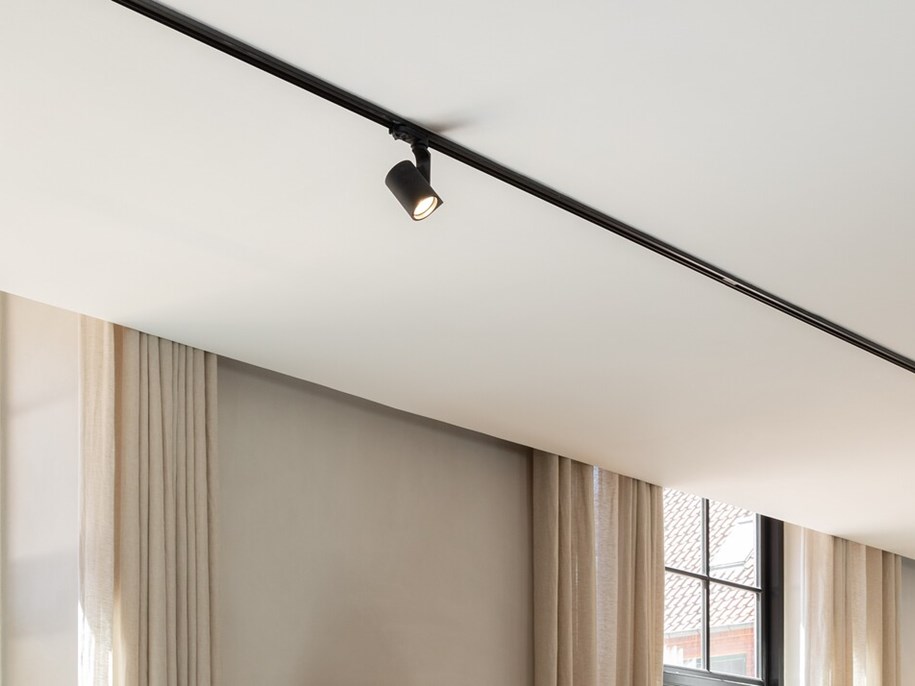

Fade acoustic plaster - ONE Smooth web

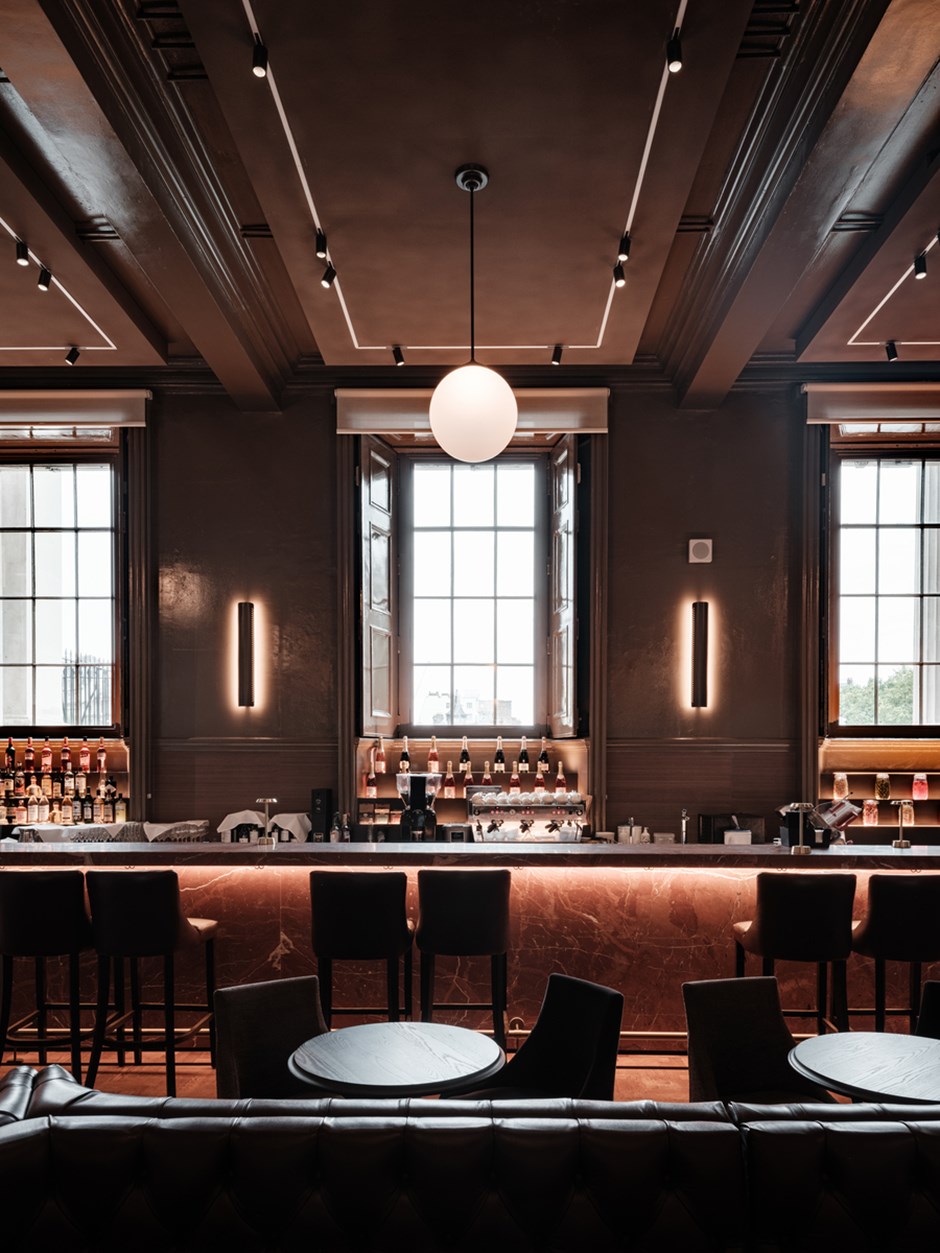

Ecophon_NationalGallery_FullRes-25
Ecophon_NationalGallery_FullRes-3
Ecophon_NationalGallery_FullRes-37
Ecophon_NationalGallery_FullRes-41
Ecophon_NationalGallery_FullRes-20
  • • Up to absorption class A
  • • Quick to install
  • • Smooth surface

Ecophon Fade™ ONE Smooth

Appearance

System images

Surfaces and colours

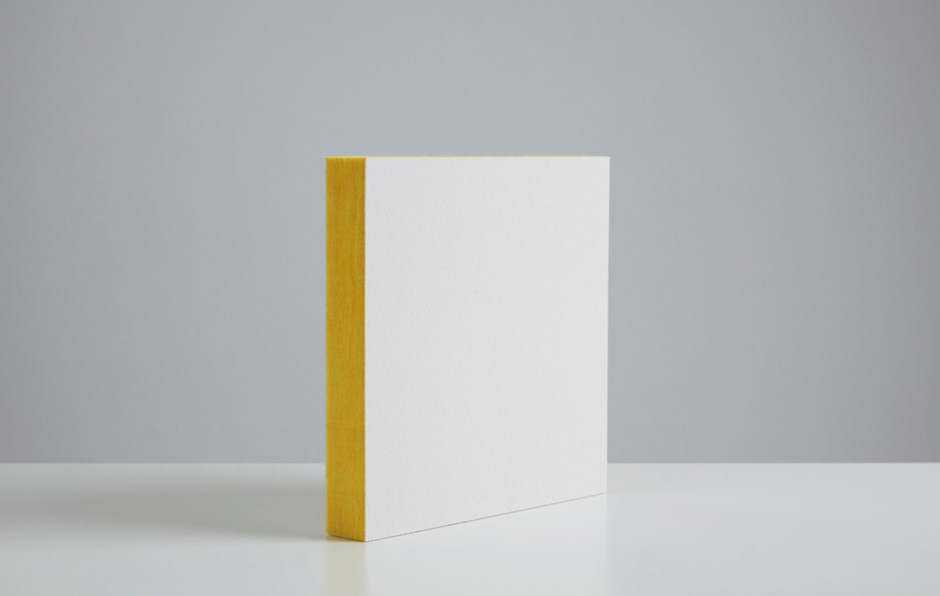

Ecophon Fade™ ONE Smooth

The Fade ONE Smooth system consists of perlite based acoustic plaster. The fine-grained perlite allows for a sanded ultra smooth surface finish. Thanks to its inorganic composition, it doesn’t age, and the surface remains intact and beautiful over time. Fade ONE Smooth comes in standard white colour and is possible to tint in custom colour with Fade Colour Dye (fine texture finish only).

Fade ONE Smooth - White
Light reflectance: 73% Nearest: NCS S1002-Y20R Nearest: RAL 9010

Installation

Available installation methods and sizes

Installation methodAvailable for sizes (mm)System diagram
M666 - Direct + Screw Fixing
1200x1200x15
1200x1200x25
1200x1200x40
M666

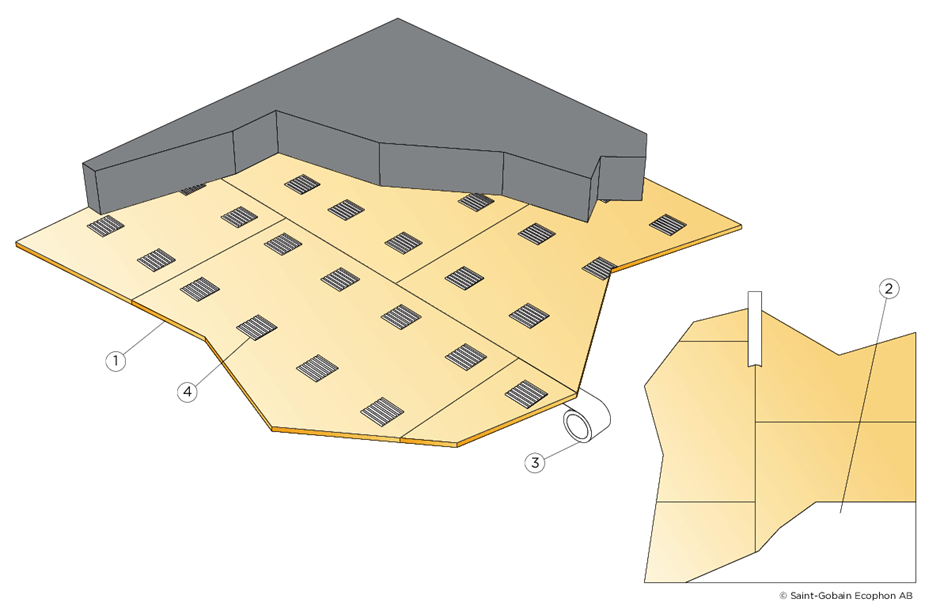

M667 - Direct + Glue
1200x1200x15
1200x1200x25
1200x1200x40
M667
M668 - Suspended + Screw Fixing
1200x1200x15
1200x1200x25
1200x1200x40
M668
M669 - Suspended + Plasterboard + Screw Fixing
1200x1200x15
1200x1200x25
1200x1200x40
M669

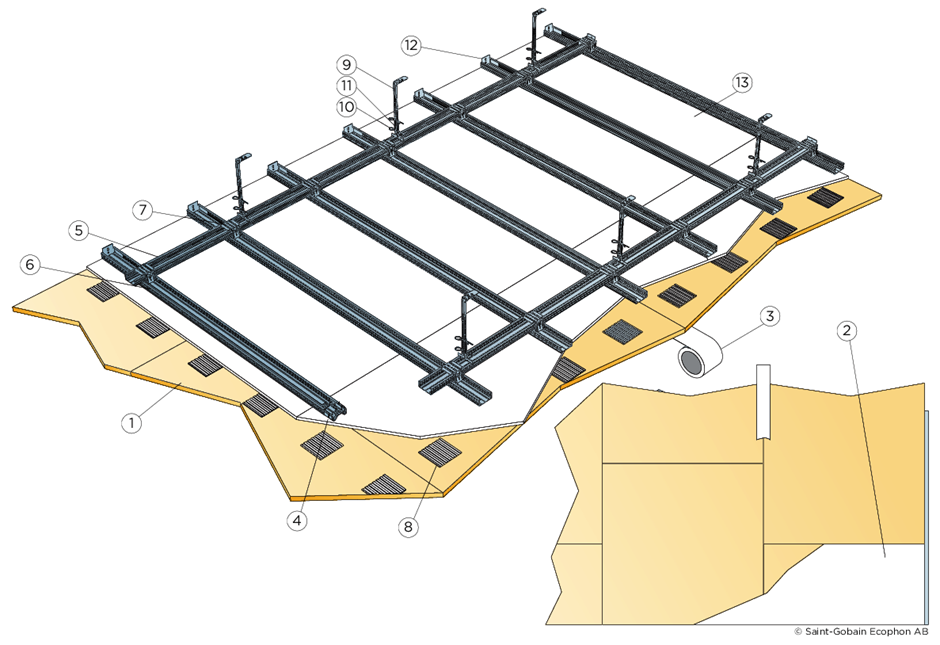

M670 - Suspended + Plasterboard + Glue
1200x1200x15
1200x1200x25
1200x1200x40
M670

Choose installation method

Select installation method and size to access drawings and full list of system components.
